Cardon Lighting

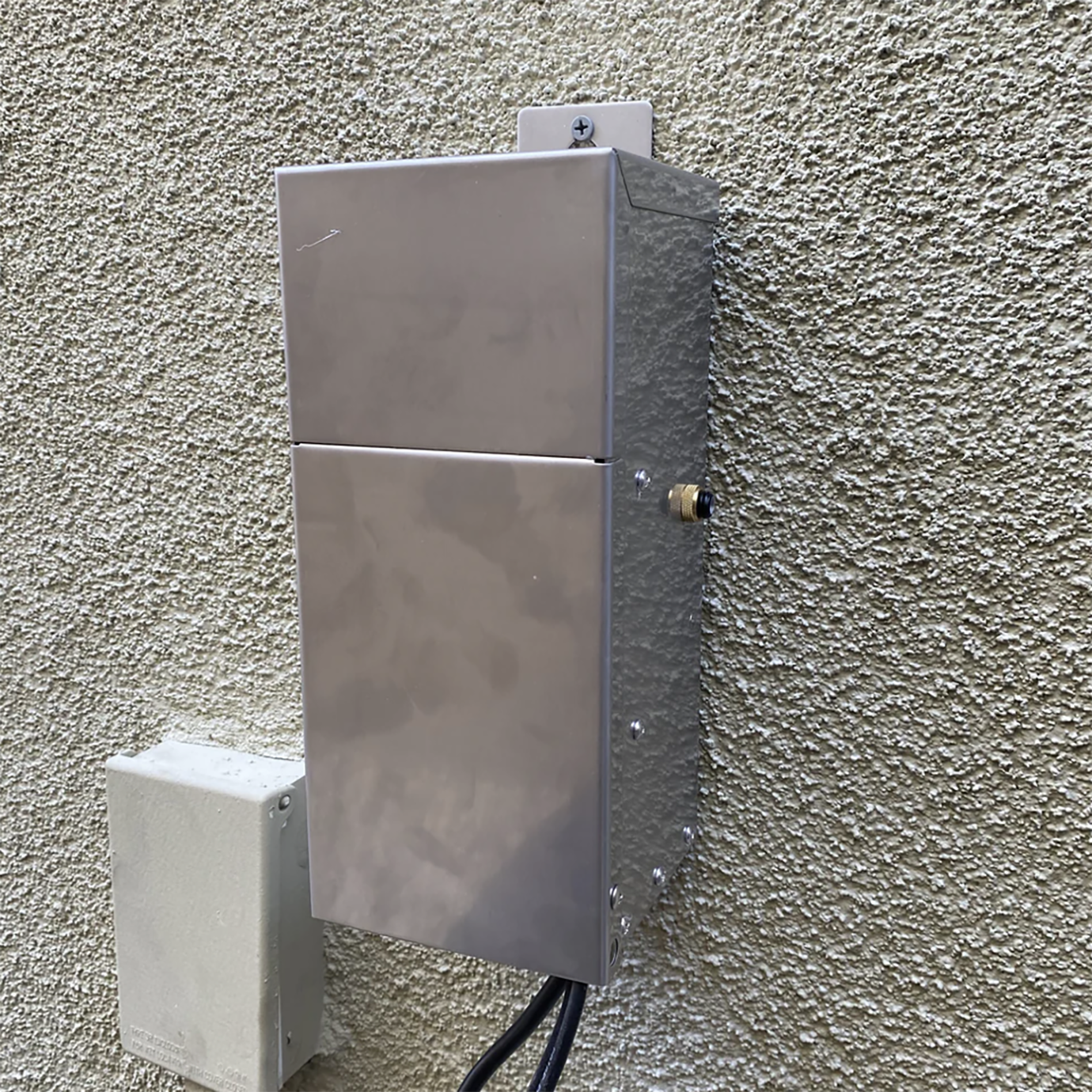

Low Voltage Transformer 300W Stainless Steel Multi-Tap Timer Photocell Built-In
Low Voltage Transformer 300W Stainless Steel Multi-Tap Timer Photocell Built-In
Free Shipping: on orders over $100
Delivery Time: 2 - 4 Business Days
Couldn't load pickup availability
Low Voltage Transformer 300W Stainless Steel Multi-Tap Timer Photocell Built-In
Landscape Series by Cardon Lighting
Fixture
Magnetic Outdoor Non-Dimmable MT
Stainless Steel Enclosure
Transformer
Non-Dimmable if used with timer or/and photocell
Temperature Class B (130°C)
Timer and Photocell Built-in Options
Housing
Stainless Steel Enclosure - Nema eR Rated
Wiring Compartment has 2 Knockout Sizes for 3/8-inch Screw Cable Connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimmensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (lbs): 14
Electrical Parameters
Input Voltage
120V 60Hz
Max. Input Current
2.5A at full load
Output Voltage without Load
12 / 15VAC
Output Voltage Fully Loaded
11.5 / 14.5VAC
Max. Total Wattage
300W
Max. Output Current
25 / 20A
Efficiency
90%
Item
CL-TR-ESL-300
